Overview

• Building a flight computer no larger than 100mm x 30mm
• Using two IMU's... for sqrt(2) noise reduction
• embedded PCB antenna for LoRa RF; Trying to get some cost savings
• Two CAN Bus Lines; but doing it on the Cheap so im basing it with the STM32G0B1RET6
• USB and SD Card; so i can do mass trasfer of data files using the USB Port
• High side Load Switches for 3x Pyro Channels

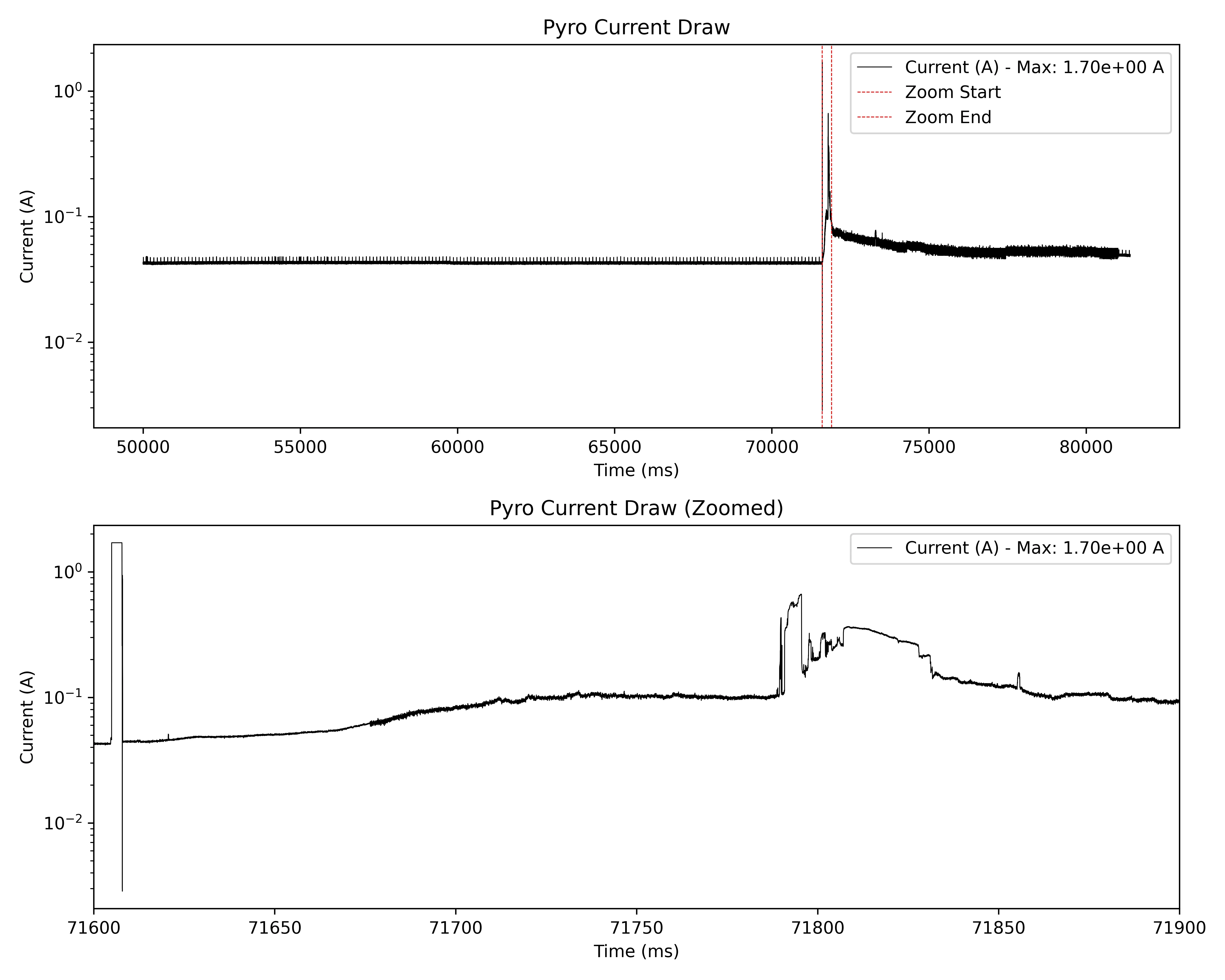

Current draw of the pyro channels for a model rocket flight computer.

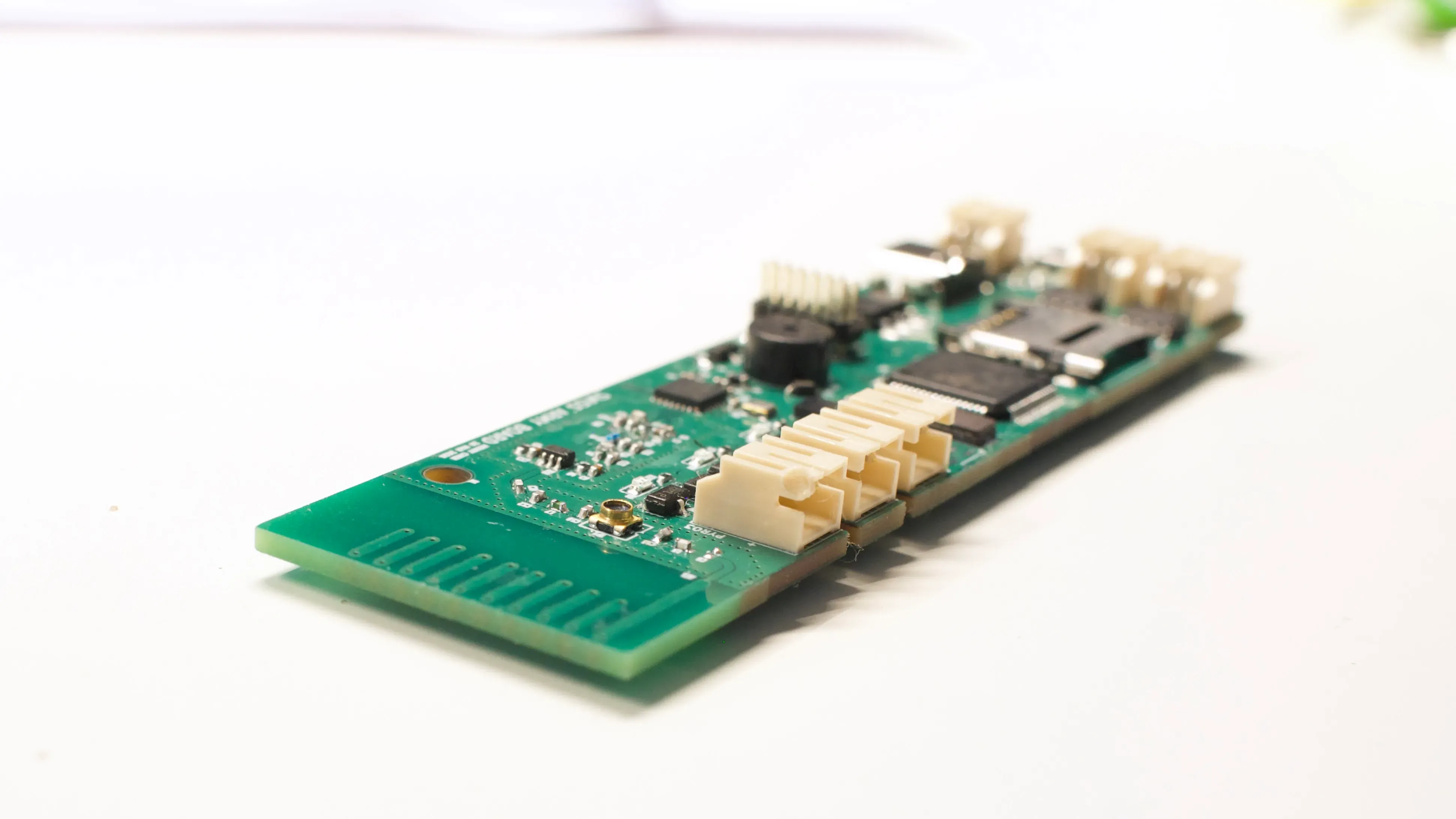

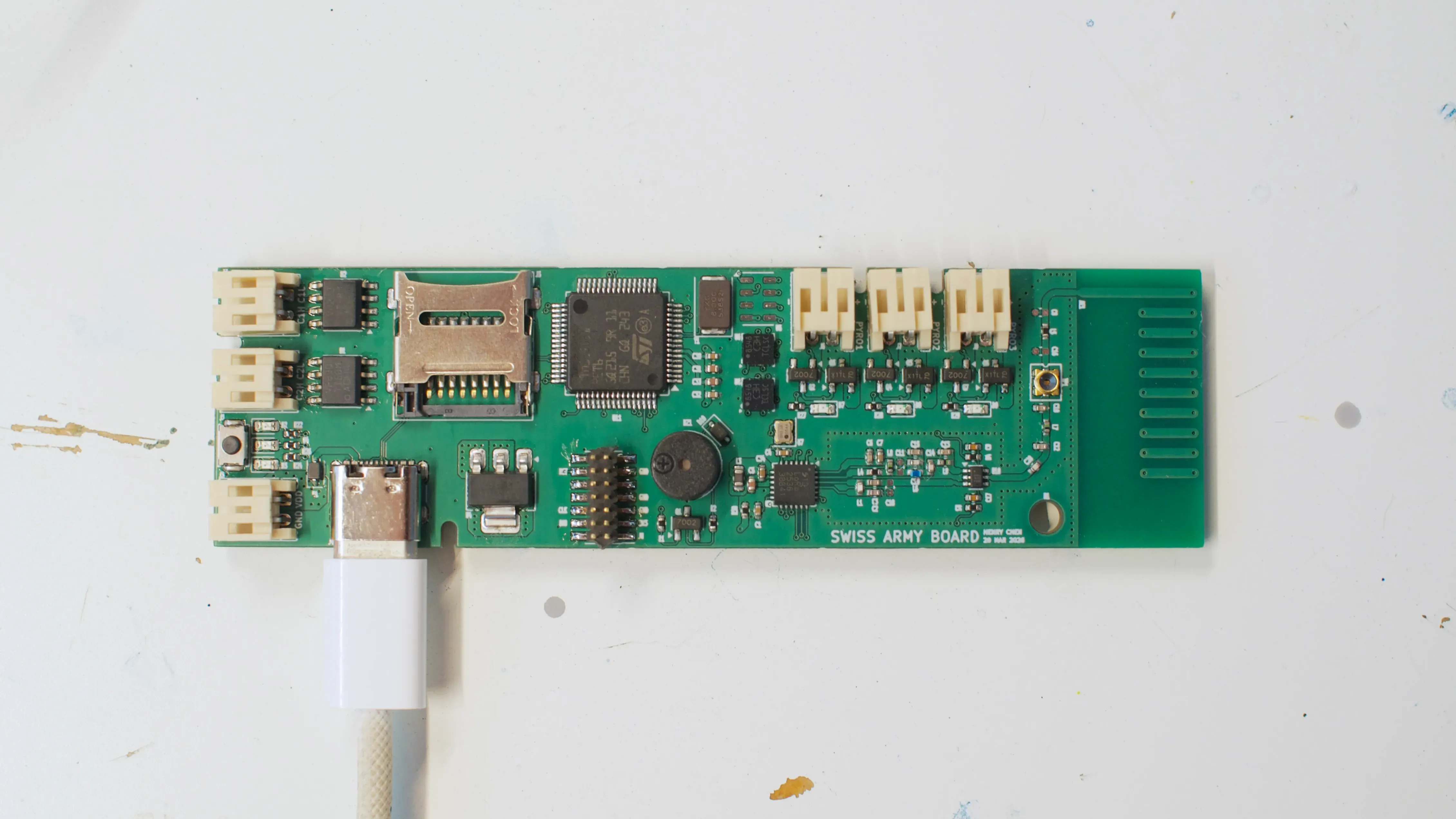

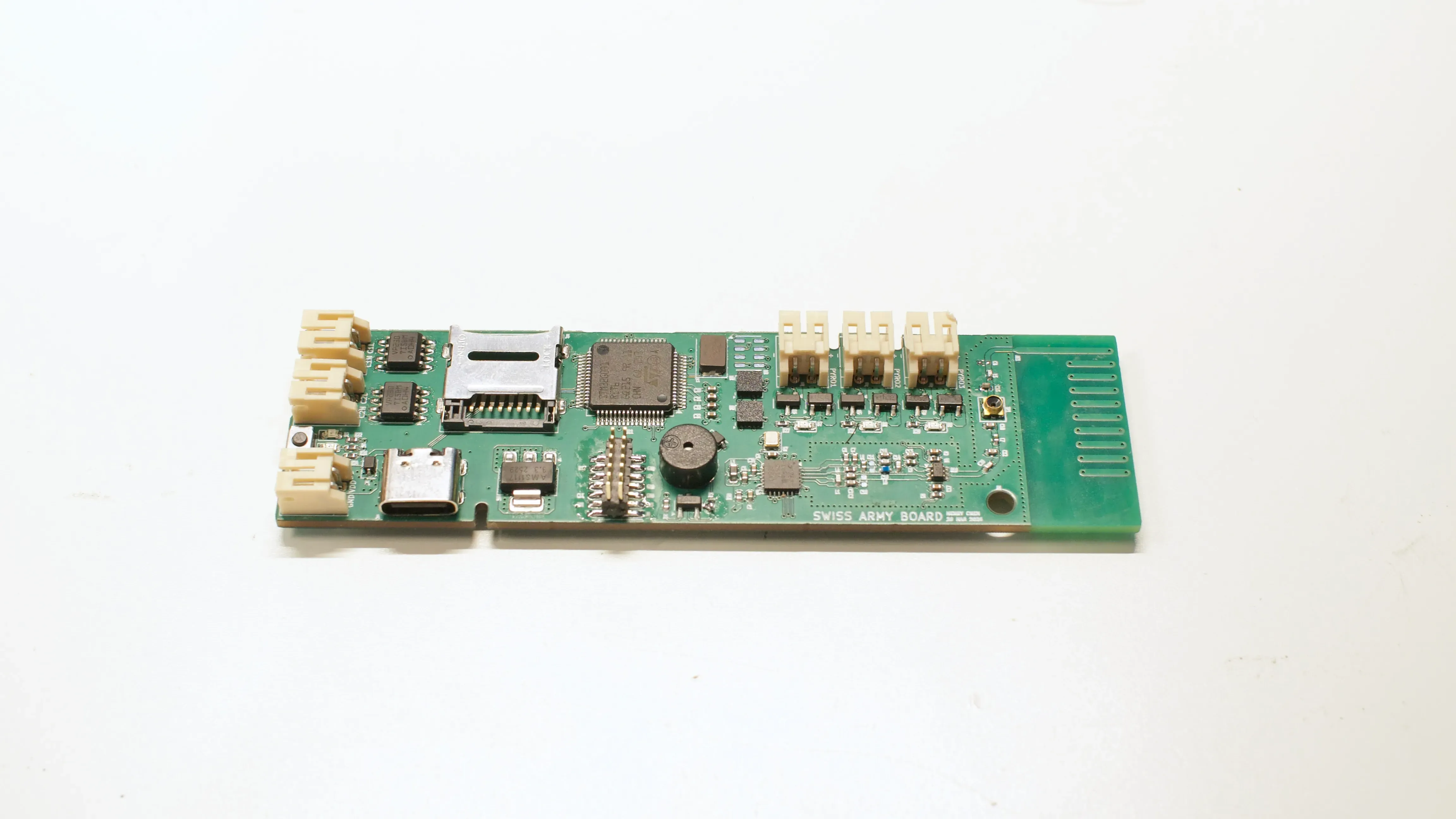

Photos
